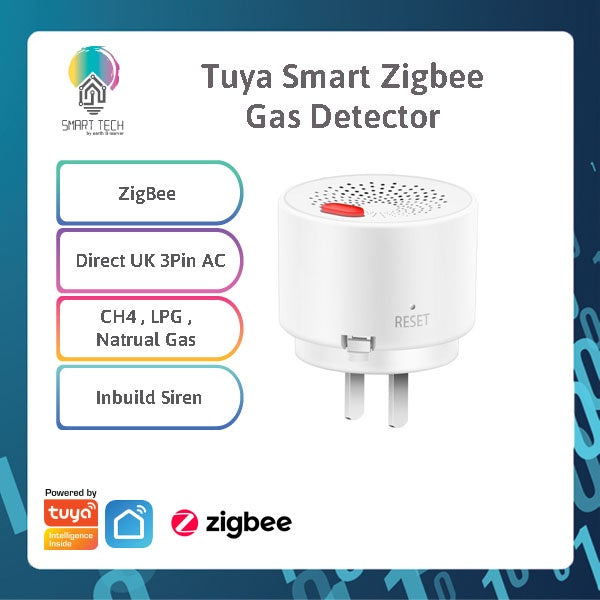

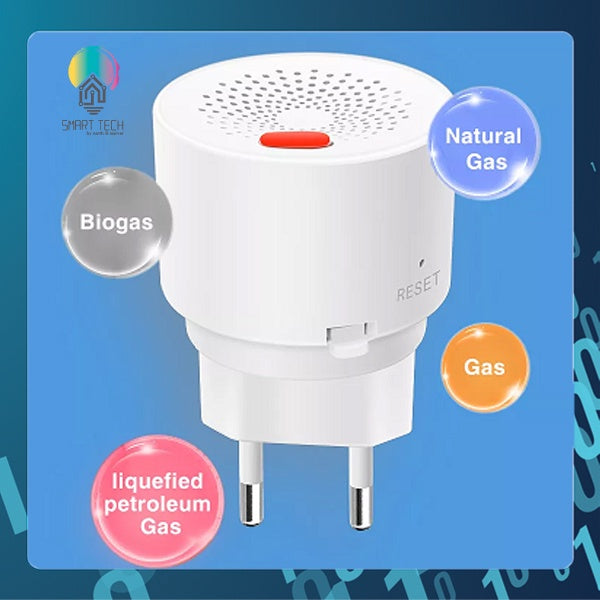

SMART TECH® Tuya Smart IOT Wireless Multi-gas Monitor Alarm Natural Kitchen Gas Detector Zigbee Tuya Gas LPG

Description

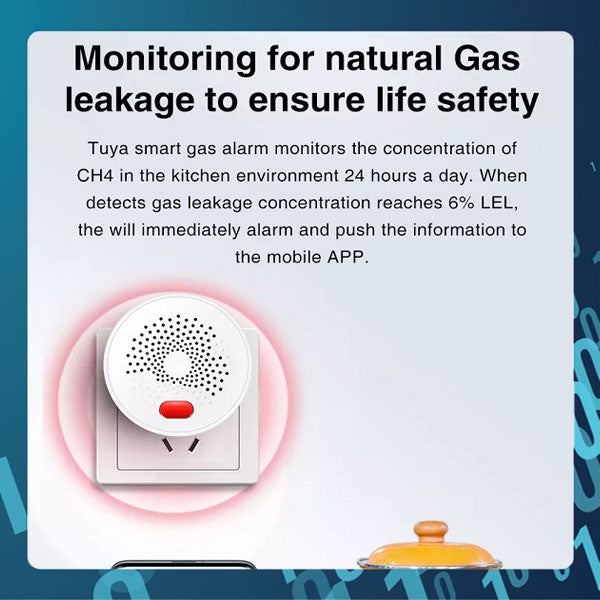

It is a Zigbee flammable gas alarm , which is used to detect the leakage of flammable gas and prevent the harm caused by gas leakage. The alarm uses high stability semiconductor gas sensor, which has the characteristics of high stability and small sensitivity drift. When a flammable gas leak is detected and the concentration value set by the alarm is reached, the alarm will send an alarm signal. This product is used indoor where leakage may occur, such as kitchens.

Technical Parameter

Working Voltage:AC85V-250V

Average Consumption:≤1.5W

Alarm Sound:70dB(1meter )

Alarm Density:7%LEL±3%LEL(CH4)

Zigbee standard:IEEE802.15.4

Working frequency:2.405~2.480GHz

Working Temperature:-10℃~+50℃

Working Humidity:Max.95%RH

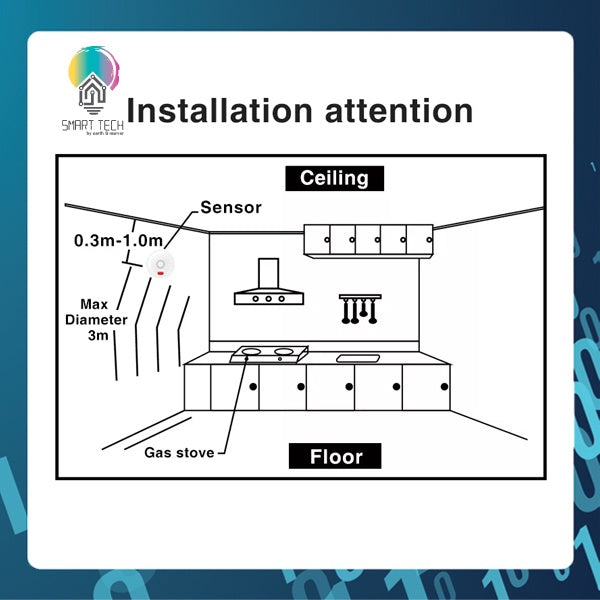

Installation Diagram

Before installation, please confirm the detecting gas density heavier or lighter than air.

If detecting gas is heavier than air: LPG. etc,

install at 0.3-1m height from floor,

semi-diameter to gas source less than 1.5m.

If detecting gas is lighter than air: nature gas, manufactured gas, marsh gas, etc,

install at 0.3-1m height from ceiling,

semi-diameter to gas source less than 1.5m.

** Required Zigbee Gateway
