Fingerprint sensor "semiconductor fingerprint sensing technology"

120 * 120 record 5 times and save 10 groups“

Fingerprint head shape: 10.4 * 10.4mm

The storage capacity is less than 10 groups of fingerprints

Biometrics

False recognition rate < 0.002%

Rejection rate < 1%

Fingerprint collection time ≤ 0.5 seconds

Fingerprint matching time ≤ 1.0 seconds

Administrator fingerprint capacity: < 1 set of fingerprints

Fingerprint setting fingerprint setting on app

Material: lock body material: integrated die casting zinc alloy

Zinc alloy of lock beam by die casting

The diameter of lock beam is less than 9 mm

No mechanical lock cylinder

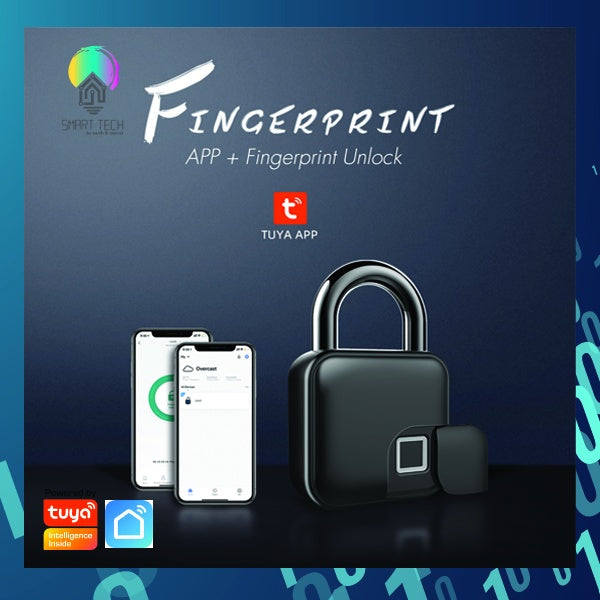

App app name Tuya (graffiti smart) / Smart Life (Smart Life)

Bluetooth 4.2

The unlocking time is less than 1 second

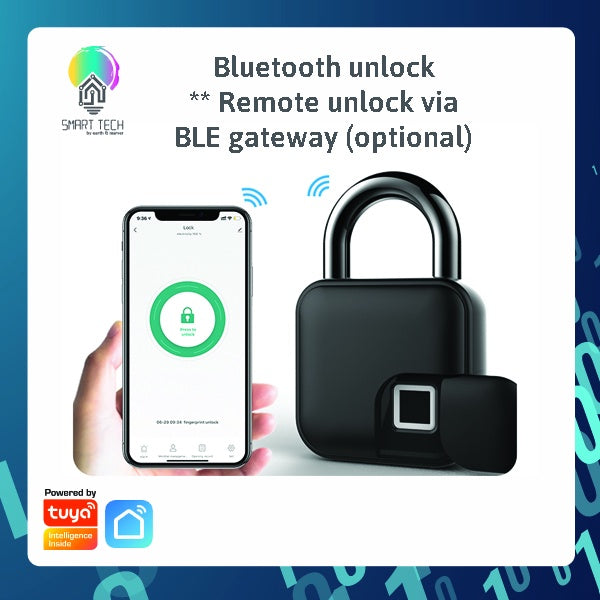

Unlock mode app connection

Support system: Android, apple

Other motors planetary reducer motor M10

The working voltage is less than 3.7V

Communication mode/

Antenna module/

Remote unlocking/

Door opening message push/

Prizing lock alarm push/

Remote setting temporary password/

Anti hijacking alarm/

Li ion battery 300mAh 3.7V

Charging current: > 5V / 200mA

For more than 3 months

The red light is off

Waterproof grade: not waterproof

The size of the product is 57.7 * 25.2 * 88.5mm

Low power alarm < 3.5V

LED light and tricolor light

USB interface micro USB 5V 0.5A (emergency + charging)

Key stroke detection key * 1 (built-in)

Working temperature - 20 ℃ ~ + 70 ℃

Net weight 186 G
